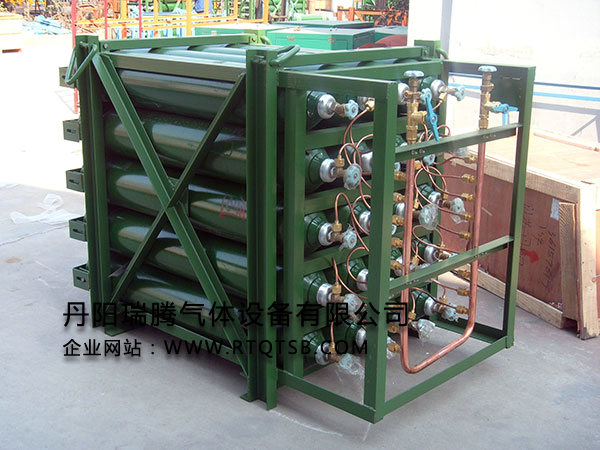

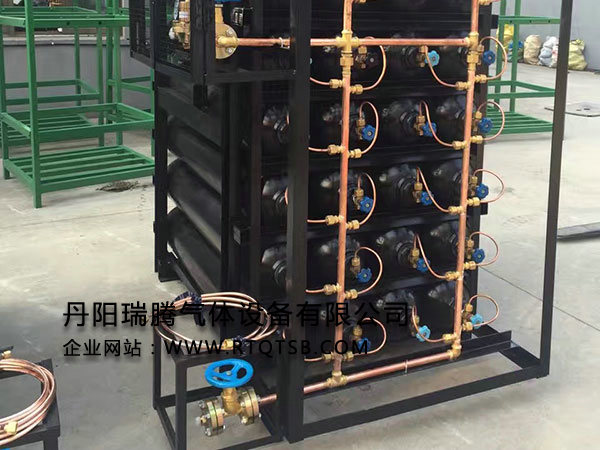

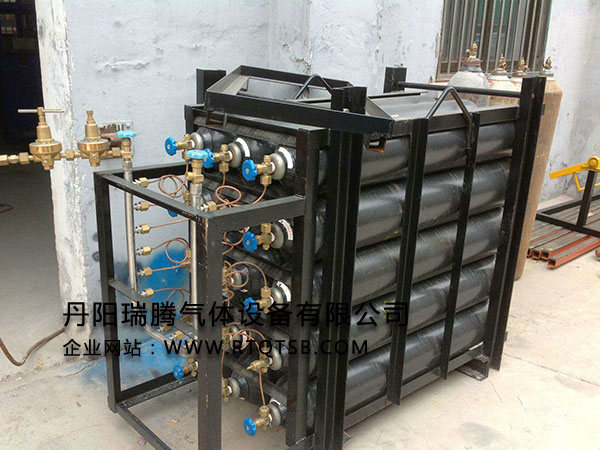

气瓶卧式集装格
  • 产品类别: 产品中心 气瓶集装格

  • 卧式集装格是用来将散装气瓶集束在一起的金属结构架,要求结构紧凑,设计合理,重量轻,抗拉强度强。集装格适用于集装供气和大规模用气的单位和用户。使之能便于叉车的叉装,吊车的吊装和车辆运输以及工作场地的随时移动。集装格的氧、氮、氩气的工作压力是15Mpa,集装阁一般按用户要求可以高压充入高压输出,也可高压充入经过减压器减压,低压输出。
    The horizontal cylinder cascade is a metal structure frame used to cluster the bulk gas cylinders. It requires compact structure, reasonable design, light weight and strong tensile strength. It is applicable to units and users with large demand of gas supply and gas consumption .Make it easy for forklift fork loading, crane lifting and vehicle transportation, and moving the work site at any time. The working pressure of the oxygen, nitrogen and argoncylinder cascade is 15Mpa. According to customers’ requirements, it can be filled and exported in high pressure. It also can be filled in high pressure and exported in low pressure through regulator.

    常用规格有9、12、15、16、20、25瓶组等多种规格,及分为卧式和立式之分。另可以根据用户需求,设计制造符合安全规范的气瓶集装装置。气瓶集装装置是当前安全、方便的气体包装、运输、使用解决方案。
    There are 9, 12, 15, 16, 20, 25 common cylinder cascades.It can be devided into two kinds: vertical and horizontal type. We can meet customers’ requirements design and produce gas cylinder cascade in accordance with safety standard. Gas cylinder assembly is the most convenient and reliable gas packaging with convenient transportation.


    卧式集装格技术参数:
    压力:15Mpa
    输出压力:按用户要求
    总重量:1500kg
    结构:钢架集容管:φ28X5、φ27X3
    集容管材质:H62、1cr18ni9ti
    分支管:φ6x1.5、φ20X3
    分支管材质:T4、1cr18ni9ti
    紧固方式:焊接和螺丝紧固
    Parameter:
    Pressure: 15MPa
    Output pressure: Customized
    Total Weight: 1500kg
    Structure: Steel tube collector: φ28X5、φ27X3
    Material of steel tube collector: H62、1cr18ni9ti
    Branched pipe:φ6x1.5、φ20X3
    Material of branched type:T4、1cr18ni9ti
    Fastening method: welding and screw fastening
