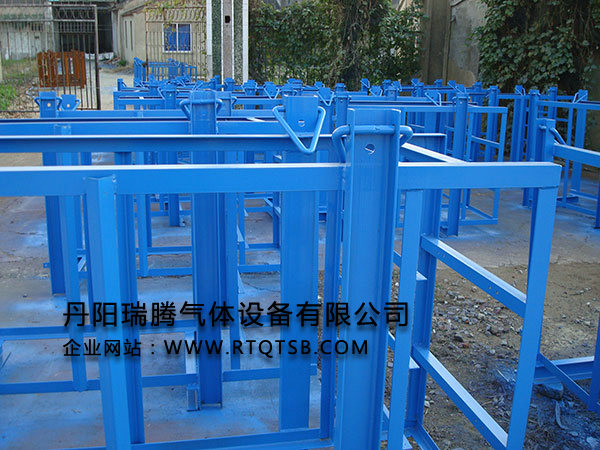

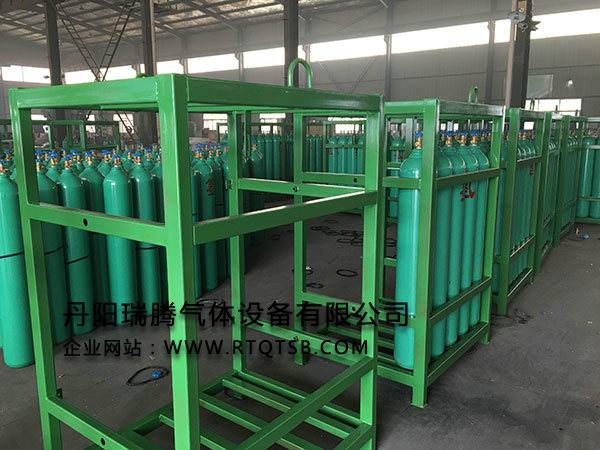

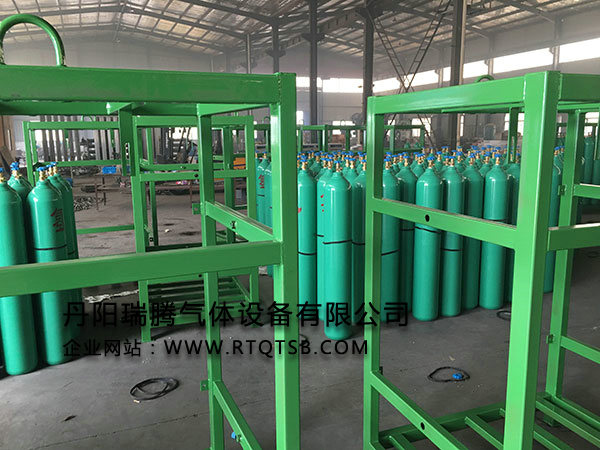

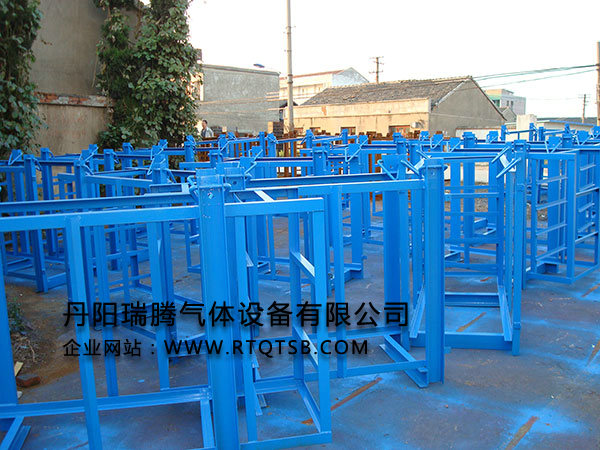

集装格(又叫气瓶架子)是按照国际标准生产,是一种技术先进的充装、科技含量较高的汇流装置,劳动强度小、操作简单、运输方便,适用于瓶装气体用量大的厂矿企业施工场地,集装供气和大规模用气的单位和用户。集装格一般按用户要求可以高压充入高压输出,也可高压充入经过减压器减压,低压输出。
目前有氧气集装格、氮气集装格、氩气集装格、氦气集装格、二氧化碳集装格、混合气集装格、氢气集装格、CNG集装格等,有立式、卧式两种,规格有6、9、12、16、20、25、30、40瓶组。气瓶集装装置是最方便安全可靠,工作效益高的气体包装、运输、使用解决方案。
Cylinder cascade (which is also called cylinder rack) is produced in accordance with the international standard. It is a kind of of filling device with advanced technology, high technology content.The labor intensity is small, operation is simple, transportation is convenient .It is applicable to industrial and mining enterprises with a large number of consumption of bottled gas, units and users with large demand of gas supply and gas consumption . According to customers’ requirements, it can be filled and exported in high pressure. It also can be filled in high pressure and exported in low pressure through regulator.
There are oxygen, nitrogen,argon,helium, carbon dioxide, mixture gas, hydrogen , CNG cylinder cascade, etc..It can be devided into two kinds: vertical and horizontal type. There are 6, 9, 12, 16, 20, 25, 30, 40 cylinder cascades. Gas cylinder assembly is the most convenient and reliable gas packaging with convenient transportation.
技术参数:
压力:15Mpa
输出压力:按用户要求
总重量:1500kg
结构:钢架集容管:φ28X5、φ27X3
集容管材质:H62、1cr18ni9ti
分支管:φ6x1.5、φ20X3
分支管材质:T4、1cr18ni9ti
紧固方式:焊接和螺丝紧固
Parameter:
Pressure:15Mpa
The output pressure: Customized
Total Weight: 1500kg
Structure: Steel tube collector: φ28X5、φ27X3
Material of steel tube collector: H62、1cr18ni9ti
Branched pipe:φ6x1.5、φ20X3
Material of branched type:T4、1cr18ni9ti
Fastening method: welding and screw fastening
